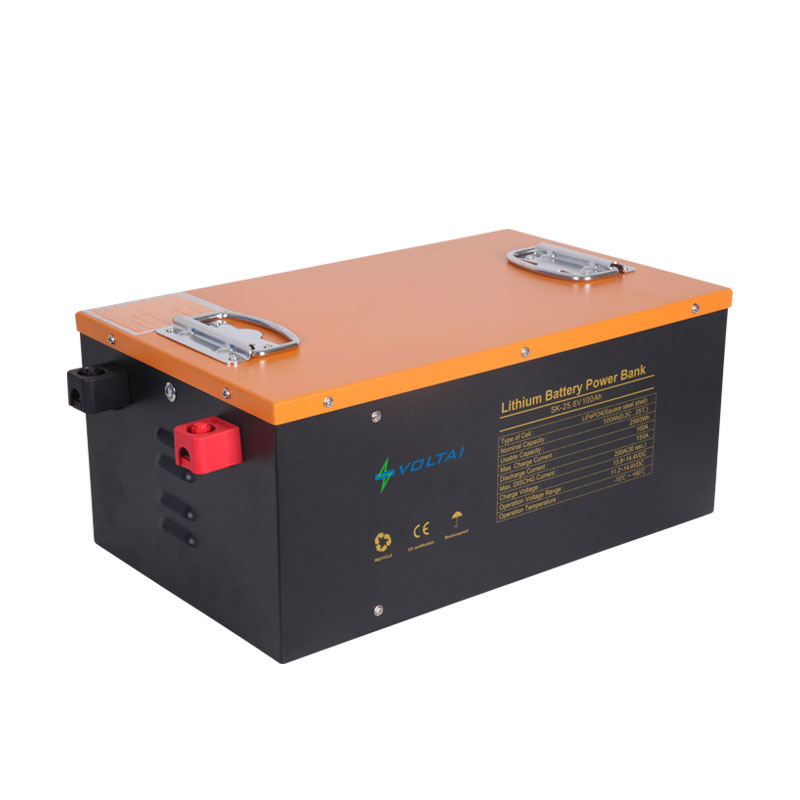

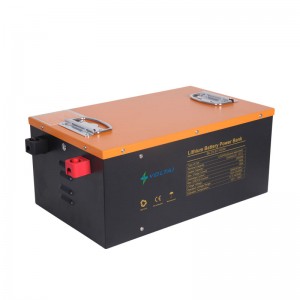

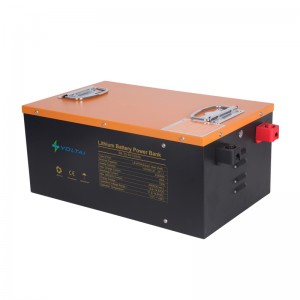

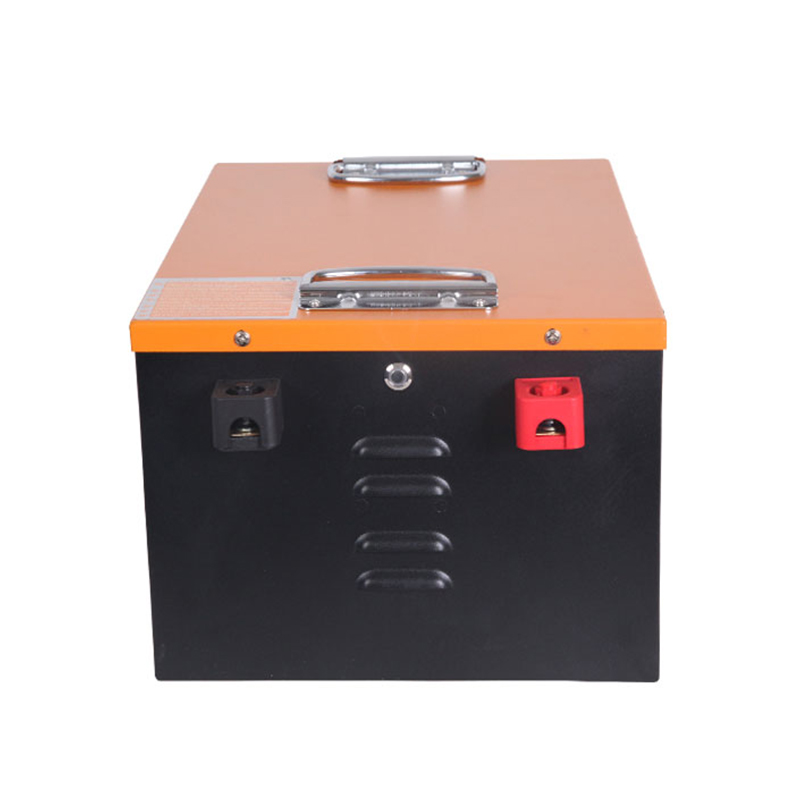

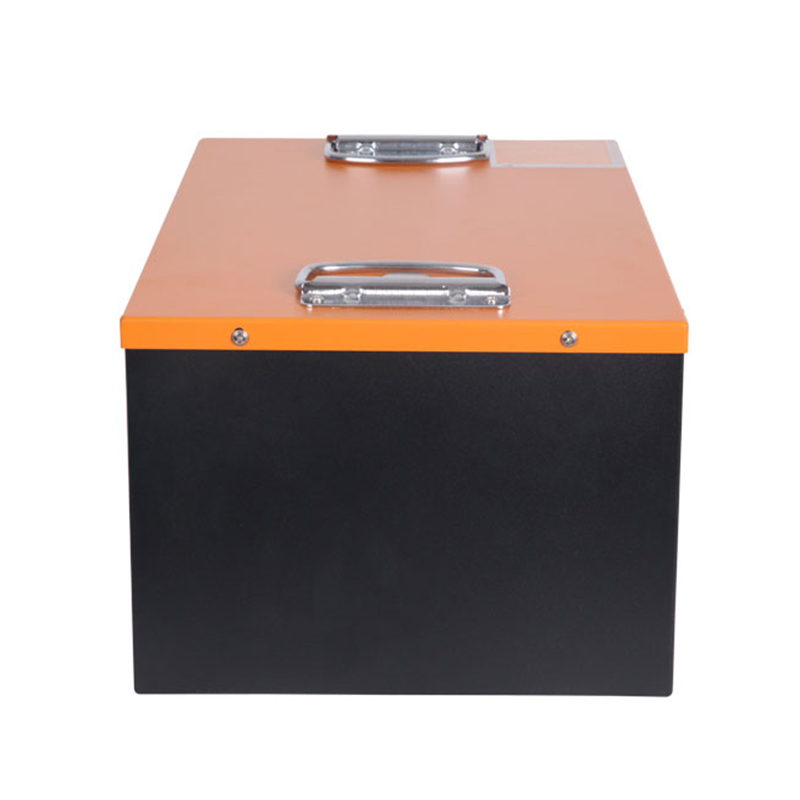

24V 100Ah Deep Cycle Lithium Battery with BMS
Application:
For no city power areas, the battery pack can be charged by solar panels and used for night lighting; For the areas that city power is expensive, the battery pack can be charged during the electricity valley value period, and used at the peak power period; For the areas which power off from time to time, the battery pack can be used as UPS, to avoid information loss caused by sudden power outage. The battery pack is applicable to commercial lighting, industrial lighting, home lighting, outdoor lighting, camping tourism, farming, planting, the night market stalls, etc.
Main Function:
High safety, none fire or explosion,built in BMS
Top brand cell
Cells cycles times: >1500
3 years warranty, 5 years life design.
Clean and Green energy, no toxic material contained
Powerful battery
Long life cycle, Over 3000 times deep cycle.
No memory effect,highly efficient charge anytime
Operation temperature: -20-55°C
Small size, light weight
Good performance at high temperature and high
temperature resistance
Low self-discharge rate: < 3% monthly
Good consistency
Technical Parameters:
| MODEL | Li-Eco 12V200AH-C | Li-Eco 12V200AH-B | Li-Eco 24V100AH-C | Li-Eco 24V200AH-B | Li-Wall 48V200AH-B |
| SPECIFICATION | |||||
| Battery Type | LiFePO4 | ||||
| Normal Battery Voltage(Vdc) | 12.8V | 12.8V | 25.6V | 25.6V | 51.2V |
| Normal Capacity(25℃，0.2C(WH) | 2560WH | 2560WH | 2560WH | 5120WH | 10240WH |
| Voltage window (Vdc) | 11.2～14.6V | 11.2～14.6V | 22.4～29.2V | 22.4～29.2V | 44.8～58.4V |
| Folat Charge Voltage(Vdc) | 13.8V | 13.8V | 27.6V | 27.6V | 55.2V |
| Max.continue discharge current（A） | 100 | 100 | 100 | 100 | 100 |
| Max.pulse discharge current（A） | 150A 1Sec. | 150A 1Sec. | 150A 1Sec. | 150A 1Sec. | 150A 1Sec. |
| Max.continue charge current（A） | 100 | 100 | 50 | 100 | 100 |
| LiFePO4 cell type | CATL Module | BYD Module | CATL Module | BYD Module | BYD Module |
| Cycle life(+25℃ 0.2C 80%DOD） | ＞1500 Cycles | ||||
| Cell Equalizer Current(A) | 1~5A Max. | ||||
| Terminal | M8 | ||||
| Storage temperature | 0℃～30℃ | ||||
| Storage duration | 6 months at 25℃ | ||||
| Safety standard | UN38.3,IEC62619,MSDS,CE | ||||
| IP degree | IP20 | ||||
| PROTECTION | |||||
| Protection | Overcharge protection、Overdischarge protection、Overcurrent protection、Shortcircuit protection、 Overtemperature protection | ||||
| AMBIENT | |||||
| Noise(dB) | < 40dB (1 meter) | ||||
| working Temperature | -10℃～+50℃ | ||||
| Humidity | 0~95% ( no condensation) | ||||
| Sea Level(m) | ≤1500 | ||||
| DIMENSION | |||||
| L×W×H (products size) mm | L547*W202*H220 | L572*W268*H183 | L547*W202*H220 | L566*W322*H291 | L778*W453*H363 |
| L×W×H (package size) mm | L586*W214*H239 | L593*W282*H201 | L586*W214*H239 | L585*W334*H310 | L860*W565*H550 |
| Weight(NW Kg) | 31.0Kg | 31.5Kg | 31.0Kg | 61.0Kg | 132.0Kg |
| Weight(GW Kg) | 32.0Kg | 32.5Kg | 32.0Kg | 62.5Kg | 152.0Kg |
