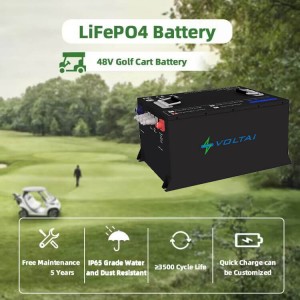

48V 72V 105Ah 160Ah Lifepo4 Battery Manufacturer For Golf Cart Utility Vehicle


Product Detail

Product Tags

海报(缩)



Item Parameter Remarks
Cells Qty 16S2P
Cell Material LiFePO4
Nominal Voltage 48.0V-512VDC Real51.2VDC
Nominal Capacity 100-105.0Ah 0.5C Standard chargeand discharge
Standard Charge Current 25.0A@25℃
Max Charge Current 100.0A
Voltage at end of Charge 46.5V
Voltage at end of Discharge 40.5V
Standard Discharge Current 100.0A
Max Continuous Discharge Current 350.0A@30s
AC Internal Resistance ≤30mΩ Between the positiveand negative poles of the discharge port
SOC Recommended Application Scope 5%~95%
Pack Size(L*W*H) 500*343*256.50mm Include fixed fleet
Net Weight 39.9kg without package
Shell Materia Plastic sprayed metal black
Waterproof IP Level IP67
Charging Safety Temperature -5-55℃
Discharging Safety Temperature -20-55℃
Cycle Life 5000cycles @DOD80%
Storage Temperature 20±5℃ -20~25℃12month
-20~40℃3month
-20~60℃1month
Storage Humidity 65±20%RH Recommendation

未标题-1

45454





Factory

QQ图片20230818155109

优势(缩)

Certification

认证(缩)

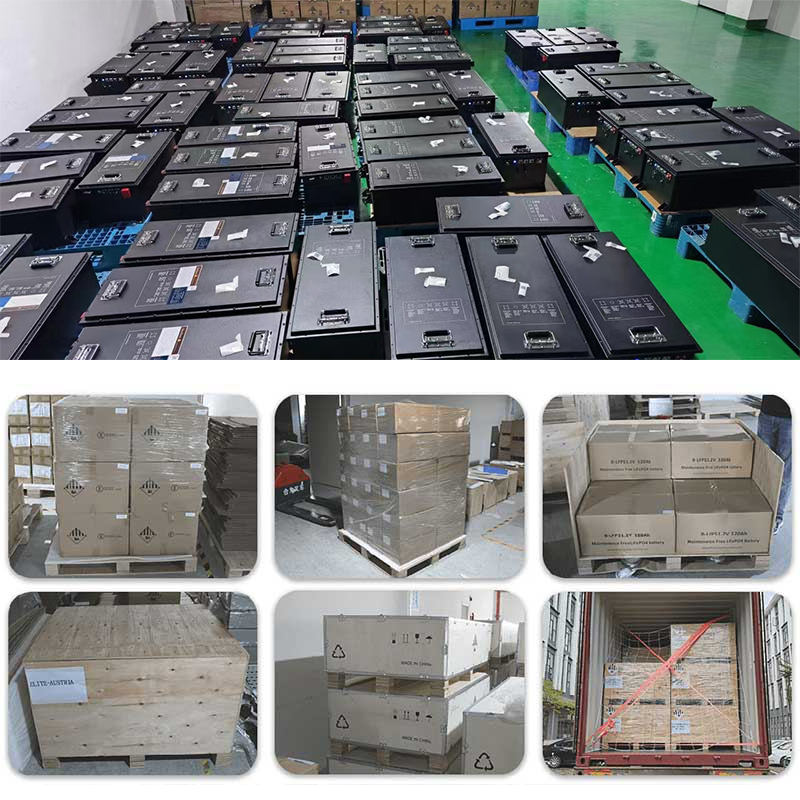

Package

Factory wholesale 48 volt golf cart lithium battery
