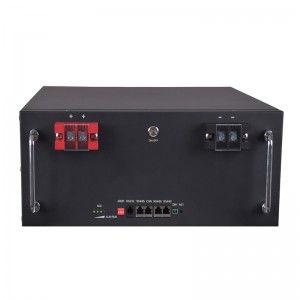

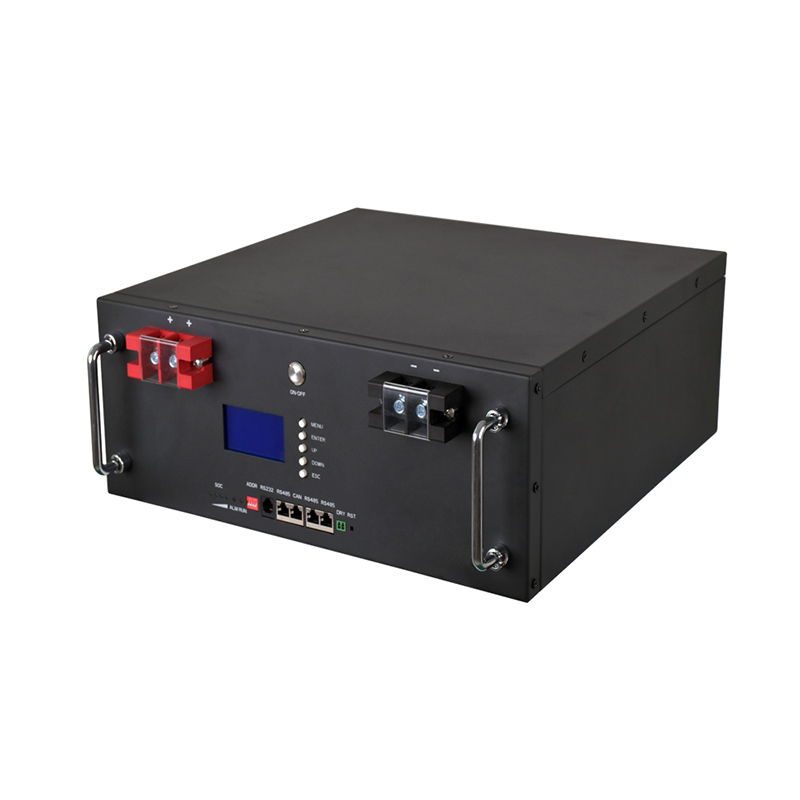

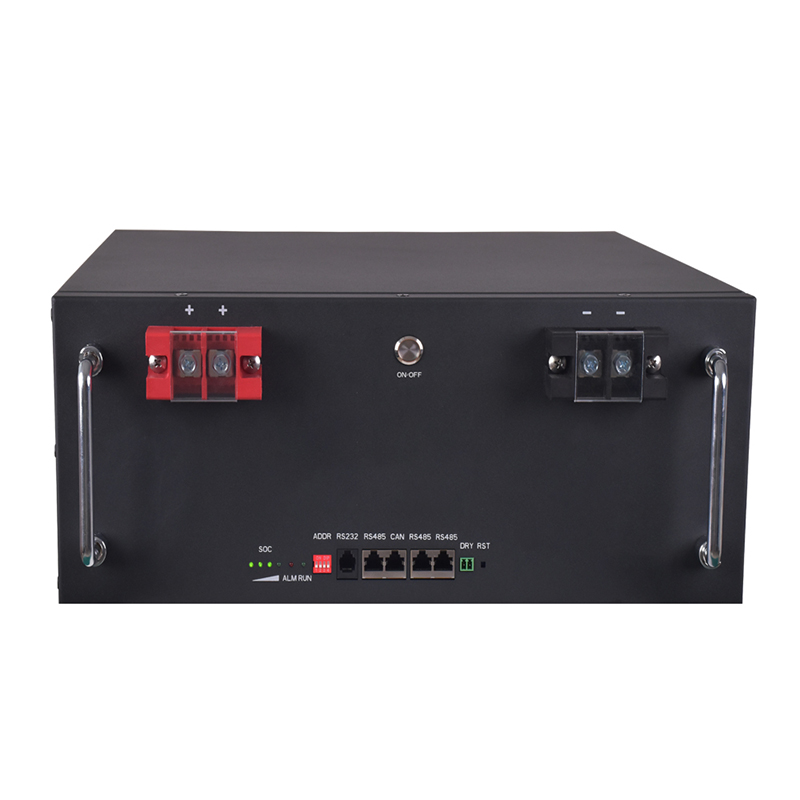

48V 200ah 10kwh power wall LiFePO4 lithium ion battery for ESS Energy Storage System
Compared with traditional batteries, Voltai’ high-voltage lithium battery energy storage system has a wide range of performance and application advantages. The leading lithium battery technology, BMS technology and system design ca-pabilities will bring excellent performance and reliability, while also providing the best solution for industrial. applications.
Key Features:
★Automotive Grade Cells-16 cell
configuration
★Integrated CAN bus RS485 BMS.

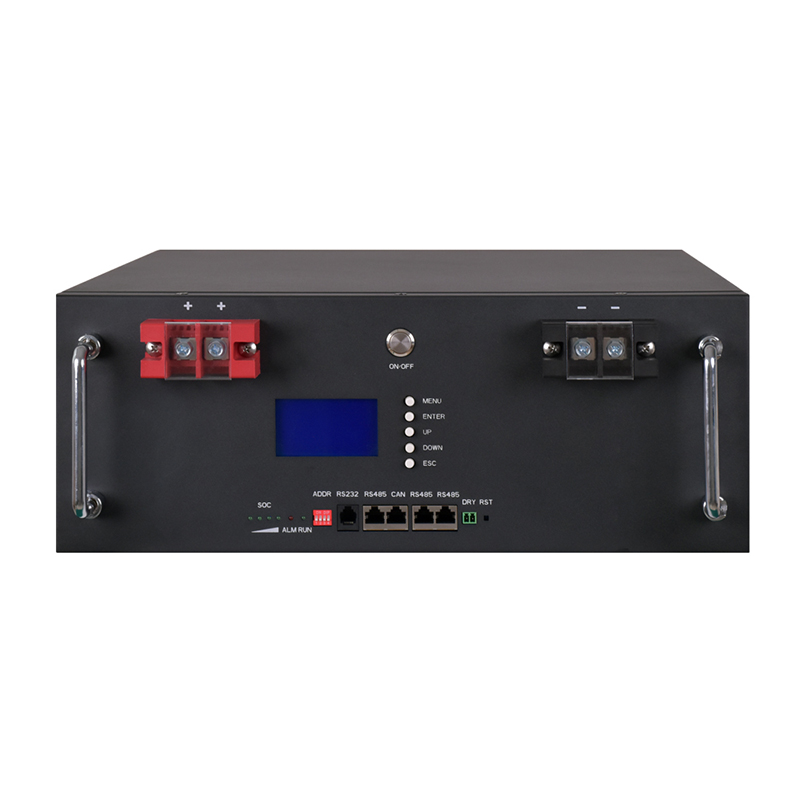

★LCD display shows battery
information.
★Pre-configured with optimal
parameters.
★No other LiFePO4 battery offers .
this functionality, longevity
and warranty at our price.
★Warranted for daily cycling.
★Optlonal Smart Heating Functlon
Can work -409C Degree
Application:
★Over charge detection function
★Over discharge detection function
★Over current detection function
★Temperature protection function
★Short circuit detection function
★Balance function
★Upper computer software monitor
★LCD Screen optional
Technical Parameters：
|
Specifications
|
JLS-LFP48100
|
|
|
Voltage
|
48 V
|
|
|
Nominal Capacity (40°C , 0.5C)
|
100 Ah
|
|
|
Weight (Approximate)
|
50Kg
|
|
|
Energy |
Normal energy (40°C , 0.5C)
|
4800 Wh
|
|
Volumetric energy density
|
95Wh/L
|
|
|
Gravimetric energy density
|
96Wh/kg
|
|
|
Dimensions (W*D*H)
|
Width*Depth* Height
|
442mm*440mm*222.5mm
|
|
Standard Discharge 25°C |
Max. constant current
|
50A
|
|
Cut-off voltage
|
42V
|
|
|
Standard charge 25℃ |
Charge Voltage
|
53.5V~54V
|
|
Max. constant current
|
50A
|
|
|
Recommended charging current and time
|
40A(0.4C) for 3 hours
|
|
|
Round trip efficiency(%)
|
＞98%
|
|
|
Calendar life
|
25℃
|
＞5 years
|
|
Cycle life (0.5C, 25℃)
|
60% DOD 4000 cycles
|
|
|
Operating temperature |
Charging: 0℃~55℃
|
|
|
Discharging: -20℃~65℃
|
||
|
Storage temperature
|
Recommended range: -20℃~55℃
|
|
Package and Shipment:
