196V 360V 500V 600V 800V High Voltage Lithium Battery With 5 years Warranty

Model:ESS-5120

Nominal voltage:51.2V

Nominal capacity @ 25°C:100Ah

Nominal eapacity @ 0°C:80Ah

Nominal energy @ 25°C:5120Wh

Dimensions (LxWxH) mm:483 x 440x 178

CYCLE LIFE (eapacity ≥ 80% of nominal):100% DOD,4,000 cycles

Operating temperature:Discharge: -20℃ to +50℃, Charge: +5℃ to +50℃


Product Detail

Product Tags

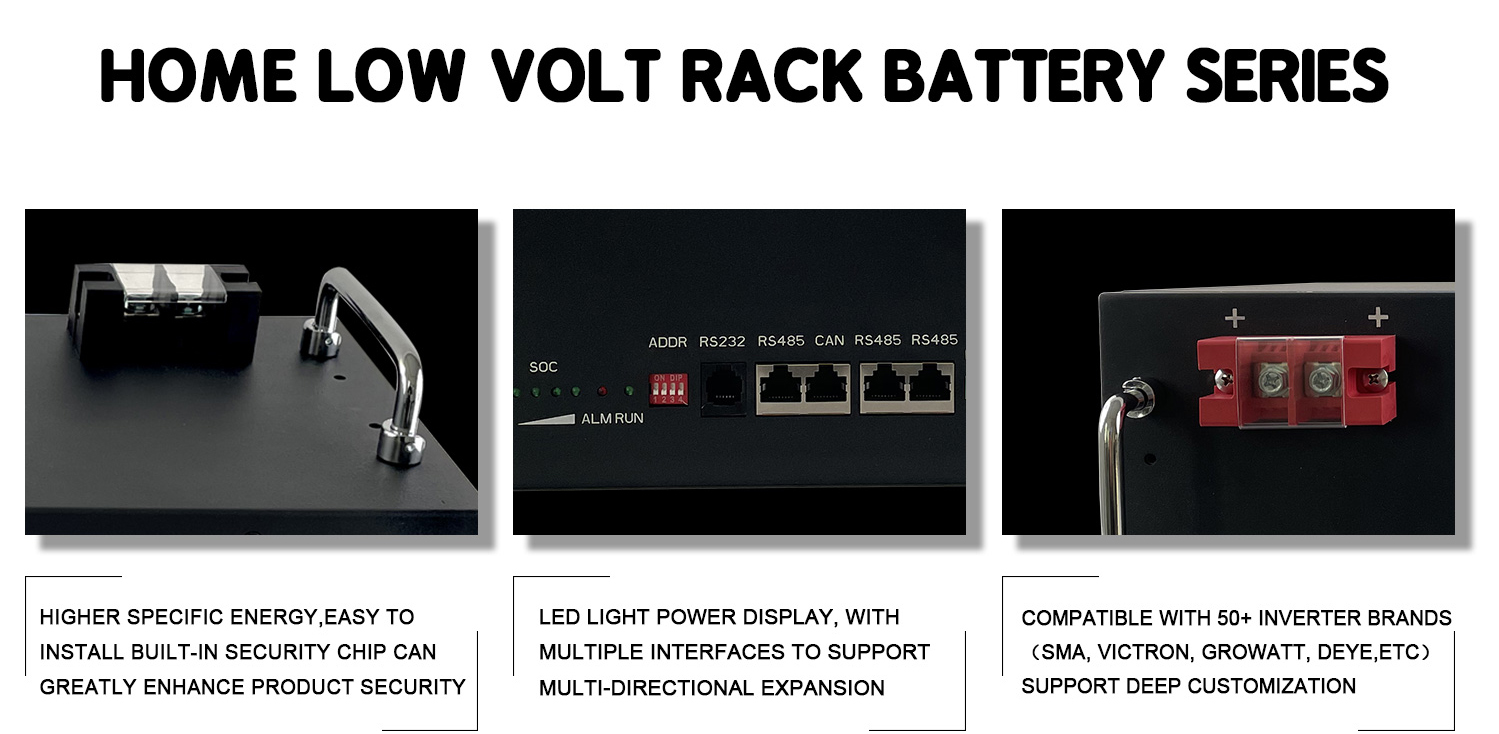

Home Low Volt Rack Battery Series

51

51.2 100ah-2

Best Integrated Solar System, affordable solution for backup power, our 51.2V 100Ah ESS-5120 Lithium LiFePO4 Battery Module, an integration kit to connect to your breaker panel, and optional expansion batteries for even more power.

Battery specification
Model ESS-2560 ESS-5120 ESS- 10240
VOLTAGE AND CAPACITY 5 1.2V/50Ah 51.2V/100Ah 5 1.2V/200Ah
Nominal voltage 51.2V 51.2V 51.2V
Nominal capacity @ 25°C 50Ah 100Ah 200Ah
Nominal eapacity @ 0°C 40Ah 80Ah 160Ah
Nominal ceapacity @ -20°C 25Ah 50Ah 100Ah
Nominal energy @ 25°C 2560Wh 5120Wh 10240Wh
*Discharge current≤IC
CYCLE LIFE (eapacity ≥ 80% of nominal)
100% DOD 4,000 cycles
80% DOD 6,000 cyeles
50% DOD 10.000 cyeles
DISCHARGE
Maximurm continuous discharge current 50A 100A 100A
Recommended continuous discharge current S50A ≤100A s100A
End of discharge voltage 40V 40V 40V
OPERATING CONDITIONS
Operating temperature Discharge: -20℃ to +50℃, Charge: +5℃ to +50℃
Storage temperature -25℃ to 45℃
Humidity (non condensing) Max.95%
Proteetion class IP 22
CHARGE
Charge voltage 58.4V
Maximum charge current 50A 100A 100A
Recommended charge current ≤50A ≤100A ≤100A
OTHER
Capable Parallel Quantity ≤15 Modules
Communication Port RS232 RS485 CAN
BMS Conneetor
Dimensions (LxWxH) mm 483x 440x 134 483 x 440x 178 483x 440x 267
Weight 28kg 45kg 85kg
*When fully charged
